Heald frame
Heald frame
Keywords: Heald frame, water jet heald frame, air jet heald frame
Category:
Product description
[P401 series]

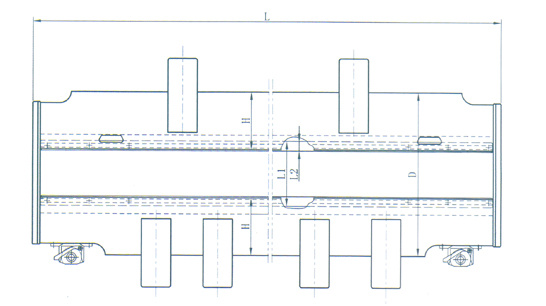

| Web width | Length L | Beam width H | Heald spacing L1 | Heald L2 | Beam | Side guard |
| 1500 | 1590 | 120 | 378/328 | J/C | HL | L |
| 1900 | 1990 | 120 | 378/328 | J/C | HL | L |
| 2100 | 2190 | 120 | 378/328 | J/C | HL | L |
| 2300 | 2390 | 120 | 378/328 | J/C | HL | L |
| 2800 | 2890 | 120 | 378/328 | J/C | HL | L |
| 3400 | 3490 | 120 | 378/328 | J/C | HL | L |
| 3600 | 3690 | 120 | 378/328 | J/C | HL | L |
Actual diagram of reed and heald frame Bestar GTM, KT566, P401
