Summary

Keywords: Heald frame, water jet heald frame, air jet heald frame

Category:

Heald frame description

Mobile:

Ms. Quan 13952718666,Mr. Cai 13952544888

Product inquiry

Related products

Product description

　

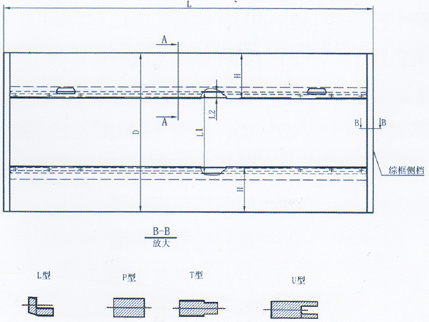

　Figure 1: Type C Overall Frame

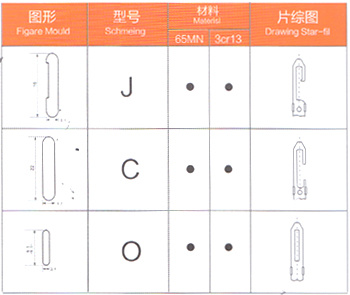

　1. L2 heddle bar width, O-type 9mm/9.5mm
　2. D is determined by H, L1, L2
　3. Side guards are available in stainless steel clad, plastic, long stainless steel clad, and wood.
　4. Built-in type uses a heddle bar that is 29mm longer than the external type

Overall Frame Description

　External type

Built-in type

　　 Overall Frame Description

Figure 2: J-type Overall Frame

1. L2 heddle bar width ，J-type 16mm
2. D is determined by H, L1, L2
3. Four types of side guard surfaces are hard anodized. The T-type side guard has a stainless steel cover

　

　　 Overall Frame Description

Figure 3: Type C Overall Frame

1. L2 heddle bar width ，C-type 22mm
2. D is determined by H, L1, L2
3. Four types of side guard surfaces are hard anodized. The T-type side guard has a stainless steel cover

Carrying Rod
