Tsuda K驹 series 5
Keywords: Heald frame, water jet heald frame, air jet heald frame
Category:
Product description
Tsudakoma Series 5
![[Sumit Series]](https://omo-oss-image.thefastimg.com/portal-saas/pg2025031720020179564/cms/image/9db8ab7a-5b51-47ad-85d7-9c499eb61487.jpg)

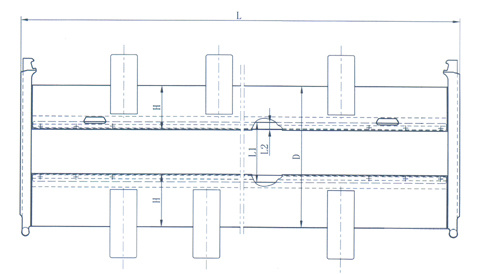

| Fabric width | Length L |
Beam width H |
Warp spacing L1 |
Warp L2 |
Beam | Side guard |
| 1900 | 2015 | Upper 104 Lower 118 | 328 | J/C | HL | U |
| 2100 | 2215 | 118/120 | 328 | J/C | HL | U |
| 2300 | 2415 | 118/120 | 328 | J/C | HL | U |
| 2800 | 2915 | 120 | 328 | J/C | HL | U |
| 3300 | 3415 | 120 | 328 | J/C | HL | U |
Air-jet heald frame physical diagram Toyota JAT610, Tsudakoma 205i, Tsudakoma ZAX
