Keywords: Heald frame, water jet heald frame, air jet heald frame
Category:
Product description
Multi-arm Series
| Fabric width | Length L |
Beam width H |
Heald spacing L1 |
Heald L2 |
Beam | Side frame |
| 1500 | 1624 | 100/100 | 278/328 | O | HDn | T |
| 1700 | 1824 | 100/100 | 278/328 | O | HDn | T |
| 1800 | 1924 | 100/100 | 278/328 | O | HDn | T |
| 1900 | 2024 | 120/120 | 278/328 | O | HDn | T |
| 2100 | 2224 | 120/120 | 278/328 | O | HDn | T |
| 2300 | 2424 | 135/120 | 278/328 | O | HDn | T |
| 2600 | 2724 | 150/120 | 278/328 | O | HDn | T |
| 2800 | 2924 | 150/120 | 278/328 | O | HDn | T |
| 3400 | 3524 | 150/135 | 278/328 | O | HDn | T |
| 3500 | 3624 | 150/135 | 278/328 | O | HDn | T |

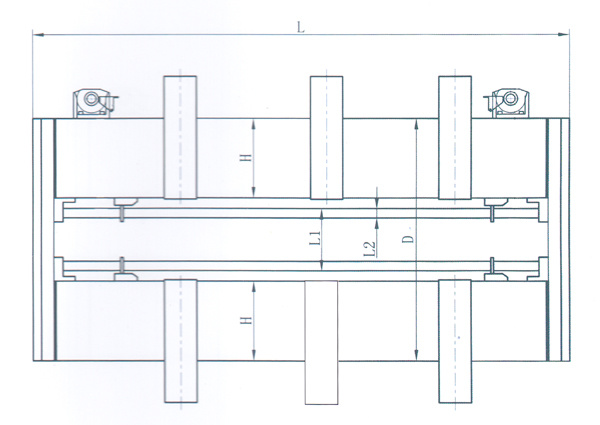

Water jet heald frame physical diagram

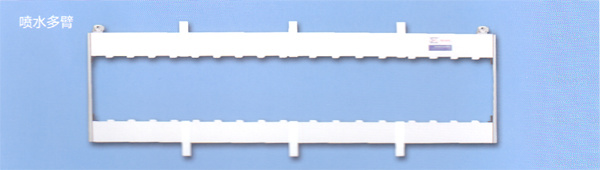

Water jet multi-arm
